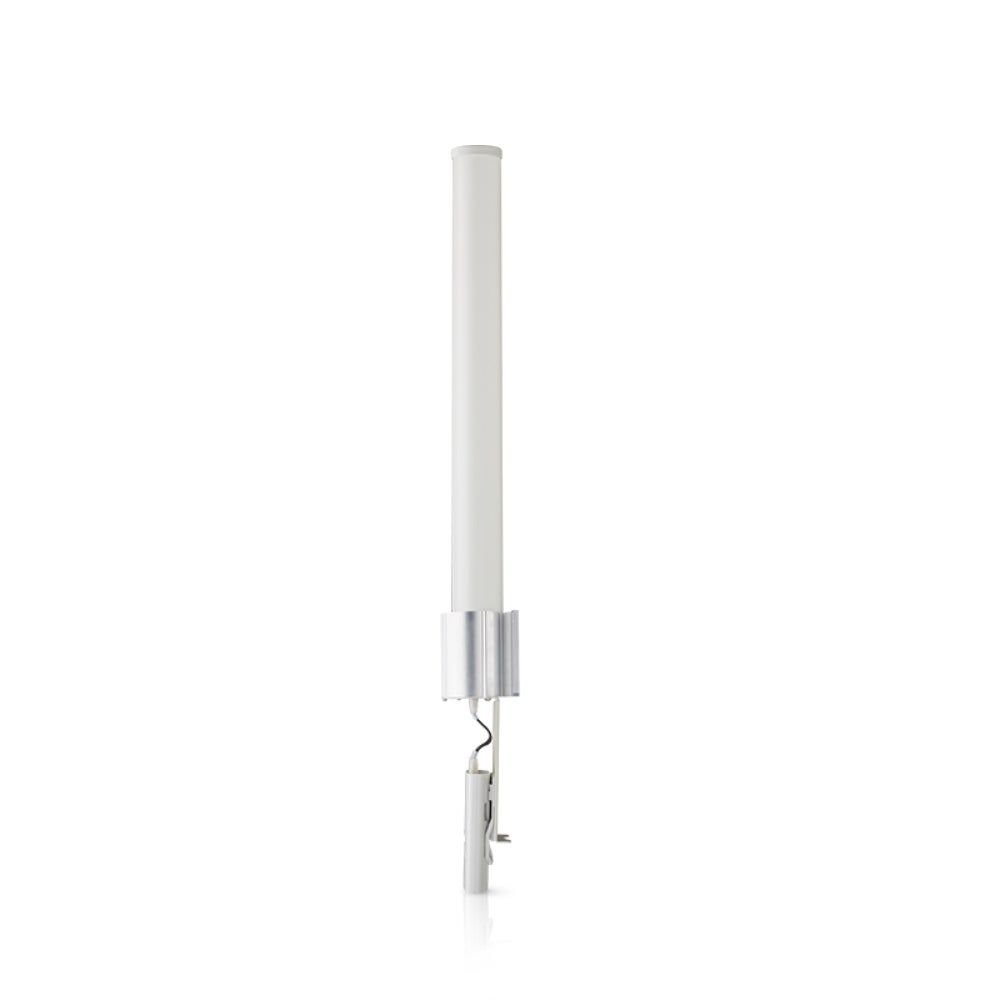

Ubiquiti AMO-5G13 Omni Antenna

Ubiquiti AMO-5G13 Omni 5.45 – 5.85 GHz 13dBi Antenna

This Ubiquiti Networks airMAX antenna, AMO-5G13, is designed to work seamlessly with Rocket M5 radios. It operates between 5.45 and 5.85GHz with 10dBi gain.

airMAX Omni is a Carrier Class 2×2 Dual Polarity MIMO omnidirectional antenna. Rocket M and airMAX Omni-Directional Antennas have been designed to seamlessly work together. Installing Rocket M on airMAX Omni-Directional Antenna requires no special tools–you simply snap it into place with the mount and use the RF jumper cables provided with the Antenna.

Product Features
• Frequency Range: 5.45 – 5.85 GHz*
• Gain: 13 dBi
• Elevation Beamwidth: 7 deg
• Max VSWR: 1.5:1
• Downtilt: 2 deg
• Dimensions** (l x w x h): 158 x 98 x 834 mm
• Weight: 0.82 kg
