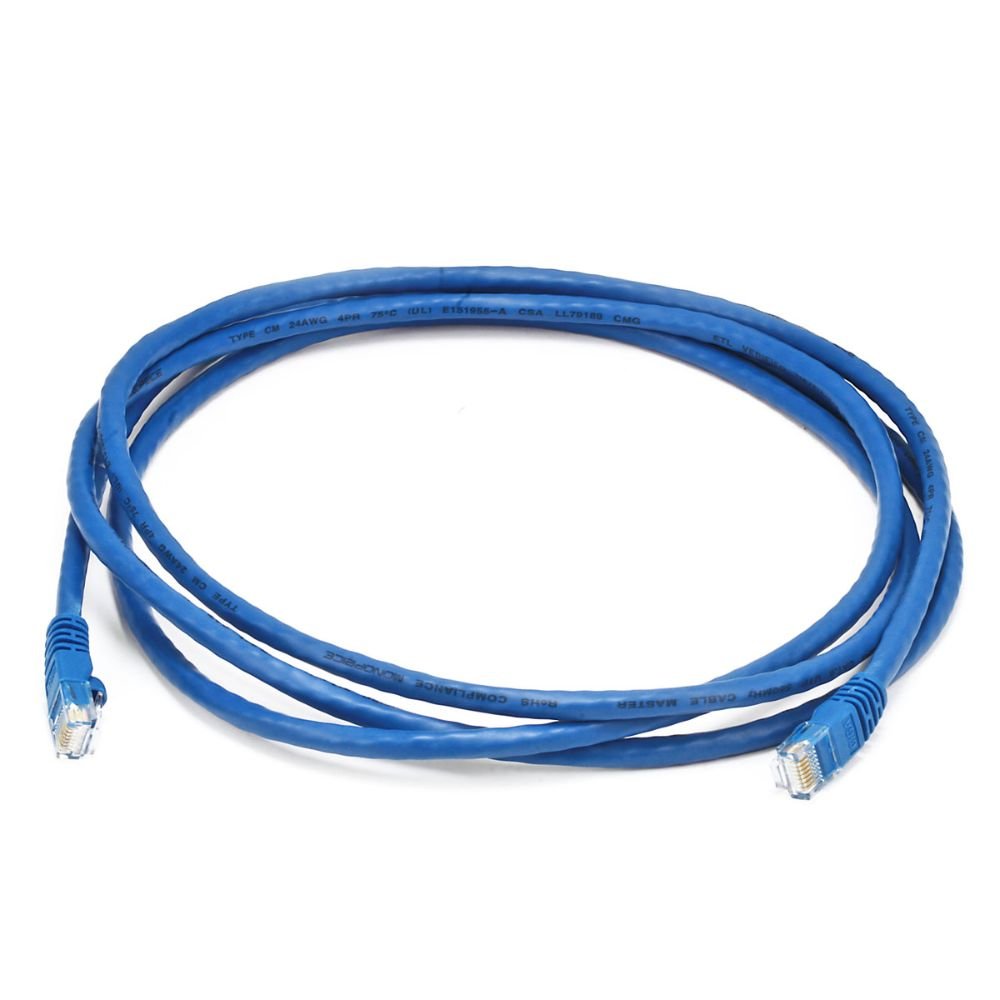

Schneider Actassi Cat6 UTP Patch Cord 5 Meter
Main
| Product | Patch cord |
| color | Blue |
| cable shielding type | FTP |
Complementary
| rated voltage | 150 V AC |
| [In] rated current | 1.5 A |
| insulation resistance | 500 MOhm |
| cable length (customizable value in configurator) | 0.5 m |
| communication network category | 6 |
| contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| contact resistance | 10 mOhm |
| AWG | AWG 26 |
| attenuation | Guaranteed: 0.1 dB |
| far end crosstalk [FEXT] | 49.8 dB |
| power sum far end crosstalk [PSFEXT] | 46.9 dB |
| number of mattings | >= 1000 cycles |
| targeted region | Asia Pacific |
Environment
| flame retardance | CM |
| standards | IEC 60603-7 ISO/IEC 11801 2nd edition AS/NZS 3080:2003 TIA/EIA-568-B FCC part 68 subpart F |
Offer Sustainability:
| RoHS (date code: YYWW) | Compliant – since 1301 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity |
| REACh | Reference not containing SVHC above the threshold |
| Product end of life instructions | Need no specific recycling operations |
