LIFAN CAT6 UTP Cable

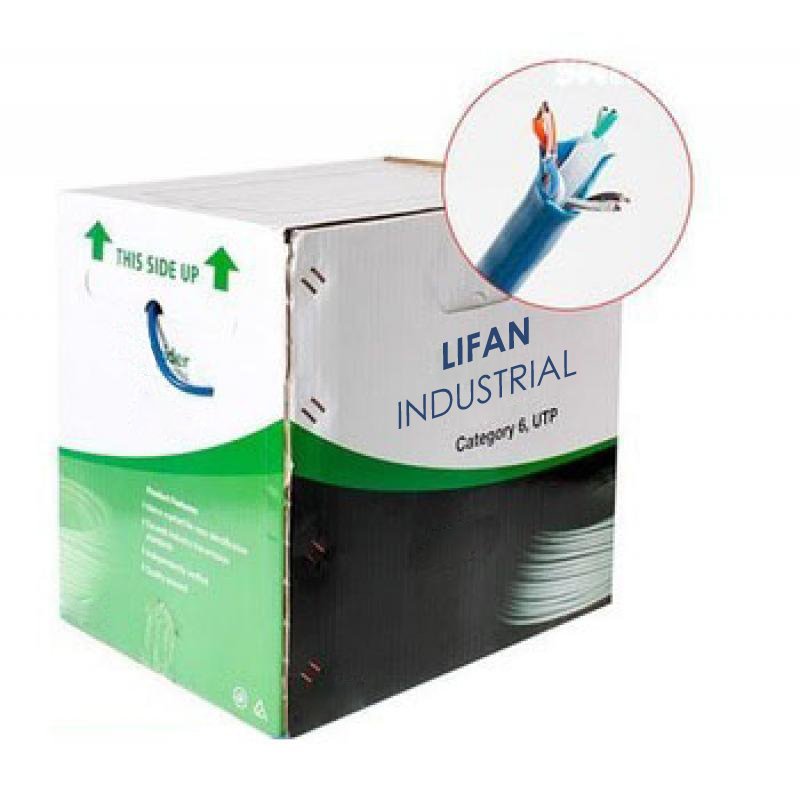

lIFAN Cat6 UTP Unshield Cable Roll, 305M



CAT6 4Pair Unshield Twisted Pair, CM rated, lIFAN, 23AWG, 305m/box, Blue



Category 6 UTP PVC Cables

The lIFAN 4-Pair Category 6 Cable is a superior product delivering excellent network performance when used in conjunction with other Category 6 products. The Category 6 cable consists of 4 pairs of solid insulated copper 23AWG (0.57mm) and is UL listed with a CM fire rating. It is designed for use in horizontal cabling situations and supplied in 305m (1,000ft) easy pull out boxes. The Category 6 cable provides a significant margin (10dB) above the minimum Category 6 Near End Crosstalk NEXT requirement of ANSI/TIA/EIA-568 and ISO/IEC 11801.



Characteristics

Main

Range of product

lIFAN

Product or component type

Copper cable



Complementary

Type of cable   4 pair cables

Cable shielding type    UTP

Communication network category        6

Flame retardance        CM

Return loss      20.1 dB, at 100 MHz

25 dB, at 20 MHz

21.5 dB, at 62.5 MHz

24.5 dB, at 8 MHz

25 dB, at 10 MHz

24.3 dB, at 25 MHz

23.6 dB, at 31.25 MHz

25 dB, at 16 MHz

23 dB, at 4 MHz

19.4 dB, at 0.772 MHz

20 dB, at 1 MHz

Attenuation      22 dB at 100 MHz, cable length 100 m

1.8 dB at 0.772 MHz, cable length 100 m

4.1 dB at 4 MHz, cable length 100 m

8.2 dB at 16 MHz, cable length 100 m

5.8 dB at 8 MHz, cable length 100 m

11.7 dB at 31.25 MHz, cable length 100 m

10.4 dB at 25 MHz, cable length 100 m

17 dB at 62.5 MHz, cable length 100 m

6.5 dB at 10 MHz, cable length 100 m

9.3 dB at 20 MHz, cable length 100 m

2 dB at 1 MHz, cable length 100 m

Attenuation to crosstalk ratio (ACR)     37 dB at 20 MHz

13 dB at 100 MHz

21 dB at 62.5 MHz

65 dB at 0.772 MHz

46 dB at 8 MHz

34 dB at 25 MHz

31 dB at 31.25 MHz

44 dB at 10 MHz

52 dB at 4 MHz

39 dB at 16 MHz

63 dB at 1 MHz

Power Sum Near End Crosstalk (PS NEXT)    35.4 dB at 62.5 MHz

32.3 dB at 100 MHz

42.8 dB at 20 MHz

62.3 dB at 1 MHz

53.3 dB at 4 MHz

64 dB at 0.772 MHz

39.9 dB at 31.25 MHz

47.3 dB at 10 MHz

44.3 dB at 16 MHz

48.8 dB at 8 MHz

41.3 dB at 25 MHz

Near end crosstalk      38.4 dB at 62.5 MHz

42.9 dB at 31.25 MHz

67 dB at 0.772 MHz

35.3 dB at 100 MHz

51.8 dB at 8 MHz

45.8 dB at 20 MHz

47.3 dB at 16 MHz

44.3 dB at 25 MHz

50.3 dB at 10 MHz

56.3 dB at 4 MHz

65.3 dB at 1 MHz

Input impedance          100 Ohm (+/- 6) at 1…100 MHz

Loop resistance           <= 73.2 Ohm/km

Capacitance unbalance           330 pF / 100 m

Resistance unbalance 5 %

Colour tint        Blue

Wire insulation material           ON

Material conductor       Solid bare copper

AWG gauge     AWG 23

Temperature resistance           75 °C

Product certifications   UL

Cable outer diameter   4.9 mm

Cable length    305 m



Environment

Standards        UL 444

ISO / IEC 11801

ANSI / TIA / EIA-568-B



Offer Sustainability

Sustainable offer status           Green Premium product

Product environmental profile  Available

Product end of life instructions Need no specific recycling operations
